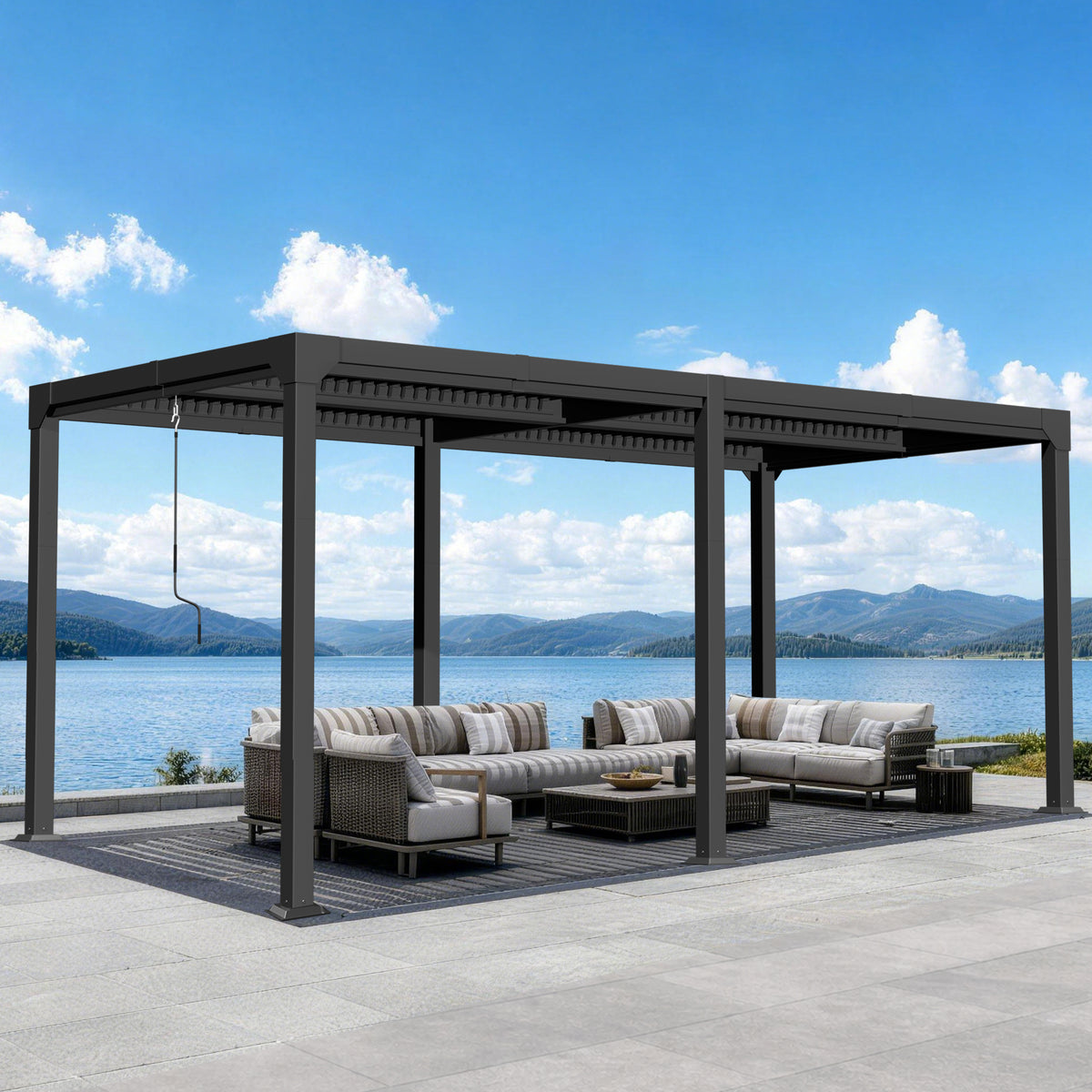

Patioslife Atlantic |10 x 20ft Contemporary Metal Louvered Pergola with Adjustable Louvers, Stylish Outdoor Pavilion for Patio & Entertaining

There's a reason so many pergolas end up unused half the year — bleached out under summer UV, buried the second a winter storm rolls through, or corroding after a run of coastal humidity. The Atlantic was built to fix exactly that.

One turn of the crank tilts the metal louvres through a full 87° range — fully open to soak up the sun, angled to catch a breeze, or fully closed to shut out a sudden downpour. Whatever the forecast, your outdoor space stays usable — through scorching summers and whatever winter throws at it.

What Makes It Different

• Powder-coated metal frame: No bare steel, no rust, no repainting.

• Adjustable louvred roof: Smooth 0–87° tilt via effortless manual crank.

• 100% Weatherproof when closed: Engineered with hidden internal drainage through the posts.

• Wind-tested to 80 mph: Independently certified by Bureau Veritas for severe storm seasons.

• Snow-load certified: Rated up to 20 lb/sq ft,  built for real winter weather, from Midwest snowfall to Northeast ice storms.

• Freestanding stability: No wall fixing needed, secured with heavy-duty masonry anchors.

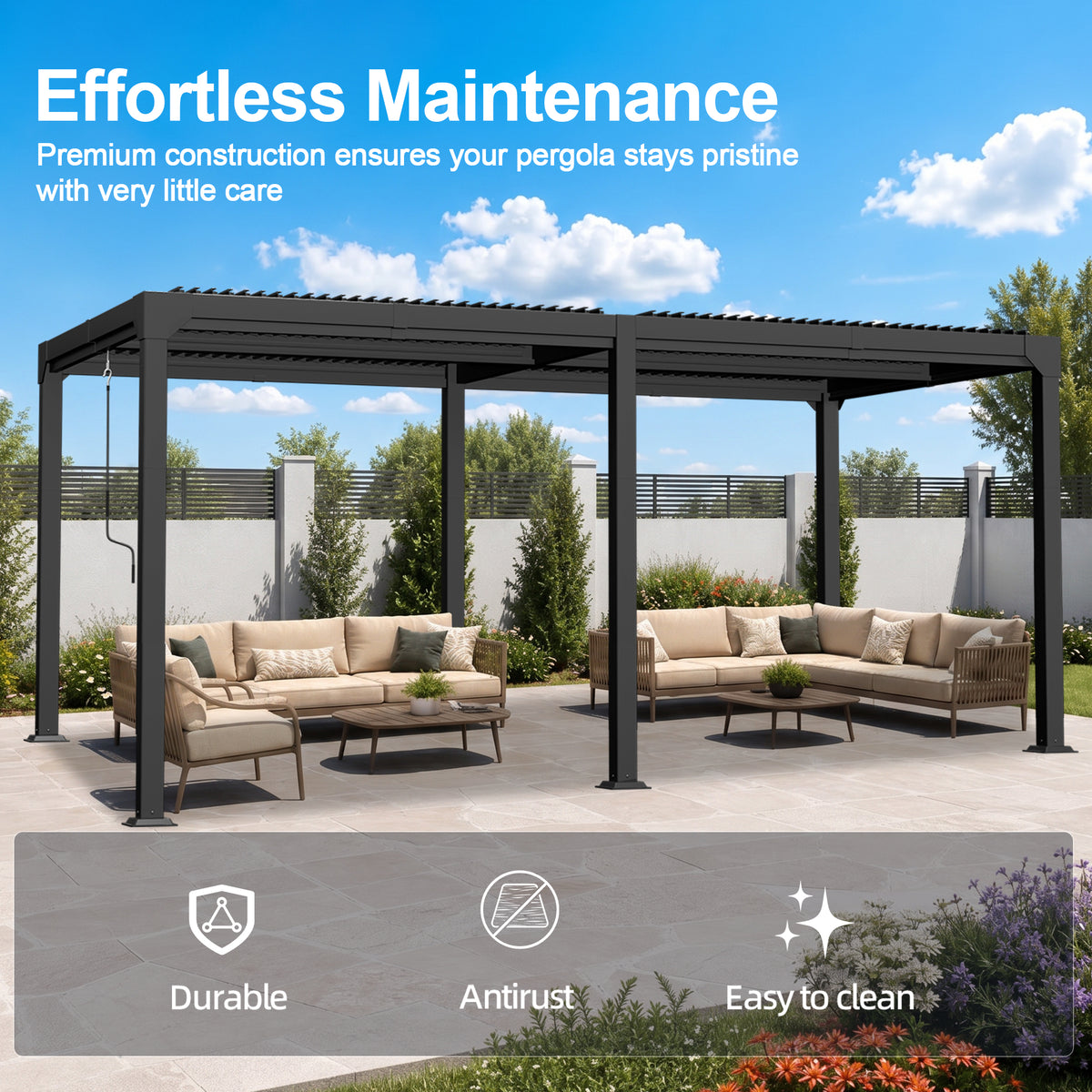

Low Maintenance, by Design

No repainting, no rust patches to worry about. Just an occasional hose-down and a quick annual check keep it looking as good as day one — even after a rough winter and a summer of nonstop sun.

Backed with Confidence

Every Atlantic™ comes with a 5-year structural warranty and a 45-day change-of-mind return policy — on top of your rights under applicable state consumer protection laws — so you can make this decision without the second-guessing.

Available in Charcoal Grey, from 10×10 ft up to 13×20 ft — sized to fit backyards both compact and generous.

Turn your outdoor space into the space you actually want to spend time in, rain, shine, or snow.

Technical Specifications

Frame & Structure

• Frame Material: High-grade Metal Alloy

• Surface Finish: Premium powder-coated finish (rust-proof and UV-resistant)

• Wall Thickness: Heavy-duty 1/16–3/32 in profile

• Beam Dimensions: Robust 6-1/4 × 3-3/4 in (with integrated gutter) | Wall Thickness: 1/16 in

• Louvre Blade Dimensions: Aegis series 6-1/4 × 1-1/4 in aerodynamic blades | Wall Thickness: 1/16 in

• Fasteners & Fittings: Heavy-duty galvanised steel hardware

Louvre System

• Tilt Range: Smooth 0°–87° adjustable tilt

• Operation: Effortless manual hand-crank system

• Drainage: Fully integrated internal drainage channels, routed through the posts

Weather Performance

• Wind Rating: Independently certified up to 80 mph (Bureau Veritas tested)

• Snow Load: Engineered for up to 20 lb/sq ft (approx. 20 in of snow) —built for serious winter weather, wherever you live

• Water Resistance: Sealed louvre design with internal drainage — storm-ready when louvres are fully closed

• UV Resistance: High-durability powder coat rated for intense summer sun exposure

Available Sizes & Colours

• 10 ft Width Series: 10×10 ft | 10×13 ft | 10×16 ft | 10×20 ft

• 13 ft Width Series: 13×13 ft | 13×16 ft | 13×20 ft

• Colour: Charcoal Grey

Warranty & Compliance

• Structural Warranty: 5 Years

• Finish Warranty: 2 Years on surface coating

• All warranties apply in addition to your rights under consumer protection laws in your province or territory.

Installation & Assembly

📥 Download the full graphical guide

• Assembly: Self-assembly

• Fixing Type: Ground-mounted with 3/8 in × 4 in stainless steel masonry anchors (wedge anchor bolts, included)

• Installation Requirement: For best stability, secure the pergola to a flat, solid surface — such as concrete, wood decking, or firm ground — using the included anchor bolts. Anchoring is especially important in areas with strong wind or uneven terrain, and pre-embedding the posts into the ground offers additional support where a solid surface isn't available.

• Recommended Installers: A minimum of 3 people is required throughout installation, with at least 2 people needed to safely lift and carry the components from the packaging.

Please Note: This is a general-version manual. Specific installation details such as drainage direction may vary according to your approved order specifications — please review your order details before assembly.

Before You Begin

• Unpacking: Check all parts against the packing list before starting. Do not discard packaging materials until installation is fully complete.

• Surface Protection: Assemble the frame on a soft covering (e.g., carpet or flattened cardboard) to protect the metal profiles from scratching.

• Protective Film: Fully remove the protective film from all components during installation. Once exposed to the sun outdoors, the film becomes very difficult to remove.

• Warranty & Compliance: Do not modify the product or substitute non-original accessories, as this will void your warranty. Patioslife is not responsible for damage resulting from incorrect assembly.

Tools & Materials Required (purchase locally)

• Silicone sealant (for weather-sealing the post caps)

• Impact drill with a 1/2 in masonry drill bit (drilling depth for anchor bolts: 4 in)

• Phillips (cross-head) screwdriver bit

• 5/32 in Allen key and a 5/8 in wrench

• Steel hammer and rubber mallet

• Tape measure, spirit level, and marker pen

• Step ladder and safety helmet

Function Testing

Before completing final assembly, test the hand-crank mechanism by rotating the louvres fully open and closed. If the louvres turn smoothly, continue to the remaining steps. If not, recheck the connection bar and mechanical arm installation before proceeding.

Maintenance & Care

• Clean the surface at least once a year to preserve the powder-coated finish.

• Use only a soft sponge or non-abrasive cloth. Avoid rags, abrasive cleaning pads, wire wool, or coloured cloths.

• Do not use acidic or alkaline cleaning products. Rinse with neutral-pH clean water and wipe dry.

• If using a pressure washer, keep a safe distance and use an appropriate nozzle, water temperature, and pressure.

• Check all screws for tightness after installation, and re-check at least once a year.

• Regularly inspect seals for leaks, and clear leaves and debris from the gutters to keep drainage channels clear.
